Private Villa Interiors
A two-storey private villa — double-height living, formal drawing room and four bedroom suites composed around a top-lit central court.
Selected professional work showcased for portfolio presentation purposes only.
A villa organised around light, hierarchy and circulation.
The plate is long and irregular — roughly 94 feet by 43 feet. Rather than fight that geometry, the interiors lean into it: a linear arrival sequence drops guests into a double-height drawing room, the family lounge extends along the spine, and service rooms are pulled to the rear edge so primary rooms hold the daylight.
The upper floor mirrors that logic for the private side — master suite anchored at one corner, three further suites along the balcony, all wrapping a top-lit central court that washes both levels with daylight.
Two plates, one continuous family.
Hand-drafted plans organising arrival, social and private zones across two levels.

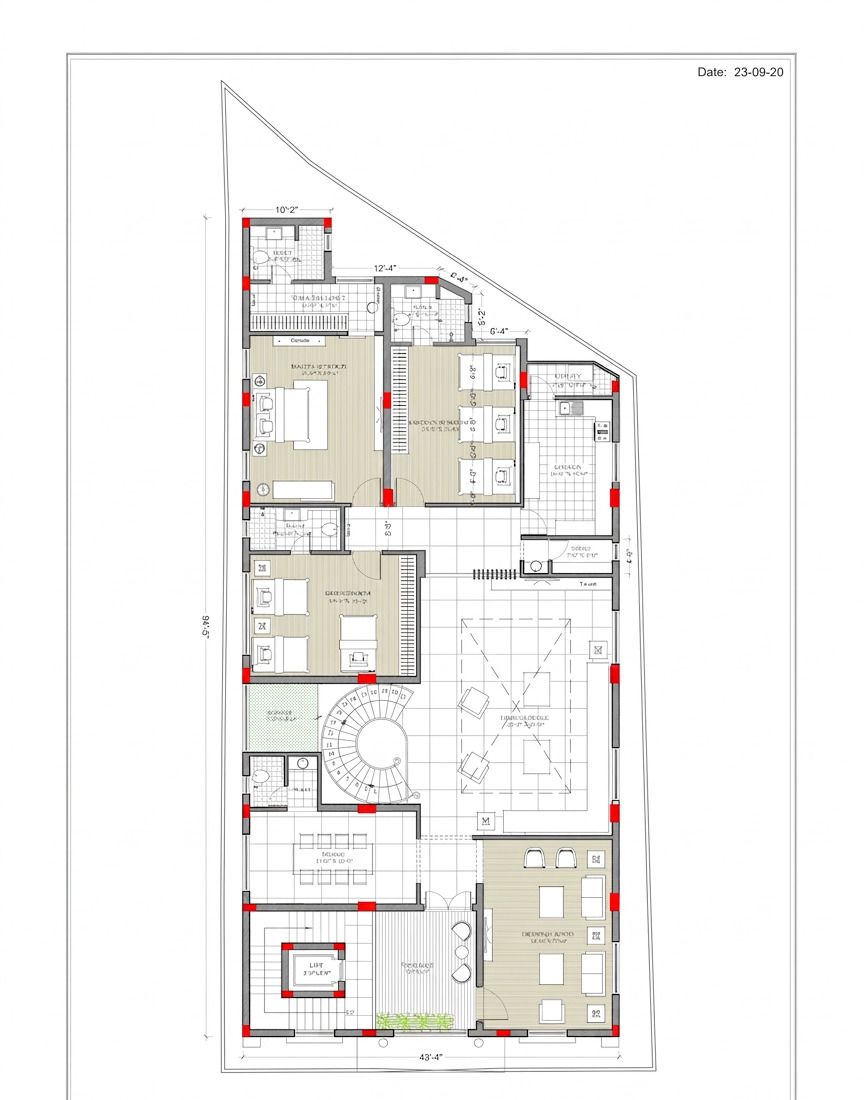

Arrival, living and family core.
Entry sit-out folds into a double-height drawing room and a 22'-3" × 29'-9" family lounge. Dining, kitchen and a kid's bedroom are arranged along the spine, with the parents' suite and a parents' walk-in closet tucked privately to the rear.
- 01Arrival
Entrance sit-out + lift core opening into the drawing room.
- 02Social
Drawing room (15' × 22') and family lounge (22'-3" × 29'-9") laid in enfilade.
- 03Dining + Kitchen
Dining (11' × 10'-9") opens to a 10' × 12' kitchen with wash + store behind.
- 04Suites
Parents' bedroom suite (15'-6" × 19'-6") and kid's bedroom (19'-4" × 14'-1").

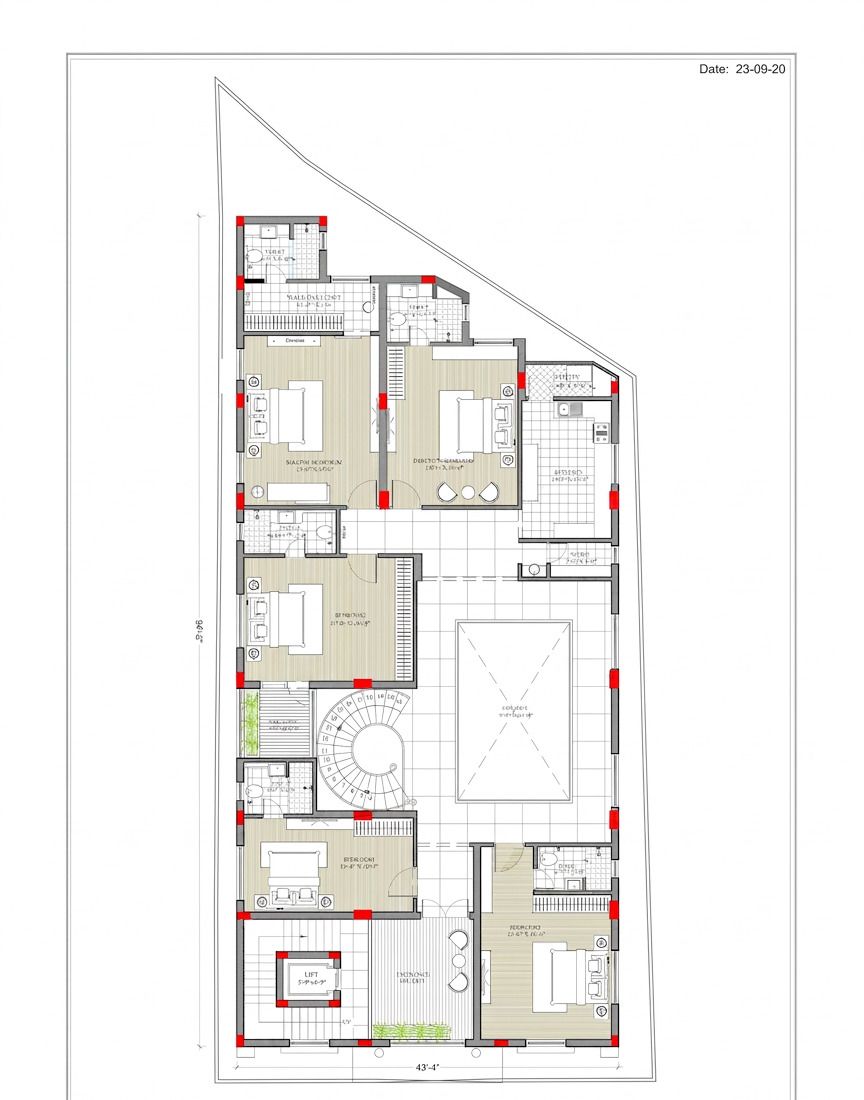

Master suite, three bedrooms and a top-lit court.
The upper level wraps a top-lit central court. The master bedroom suite is anchored to one corner with a 15'-6" × 5'-6" walk-in closet; three further bedrooms — each with its own toilet — share the balcony spine. The spiral stair connects both floors through the cut-out.
- 01Master
Master bedroom (15'-6" × 19'-6") with WIC, toilet and private utility.
- 02Bedrooms
Three additional bedroom suites, each with attached toilet.
- 03Court
Central cut-out / court bringing daylight into the upper plate.
- 04Circulation
Spiral stair + lift core continuing from the ground floor spine.
Materials registered room by room.
A continuous palette of book-matched marble, fluted timber and warm brass lighting — calibrated room by room to keep the villa quietly cohesive.
Marble flooring with inset border, fluted feature wall and a glass-edged mezzanine that overlooks the lounge — the social heart of the villa.

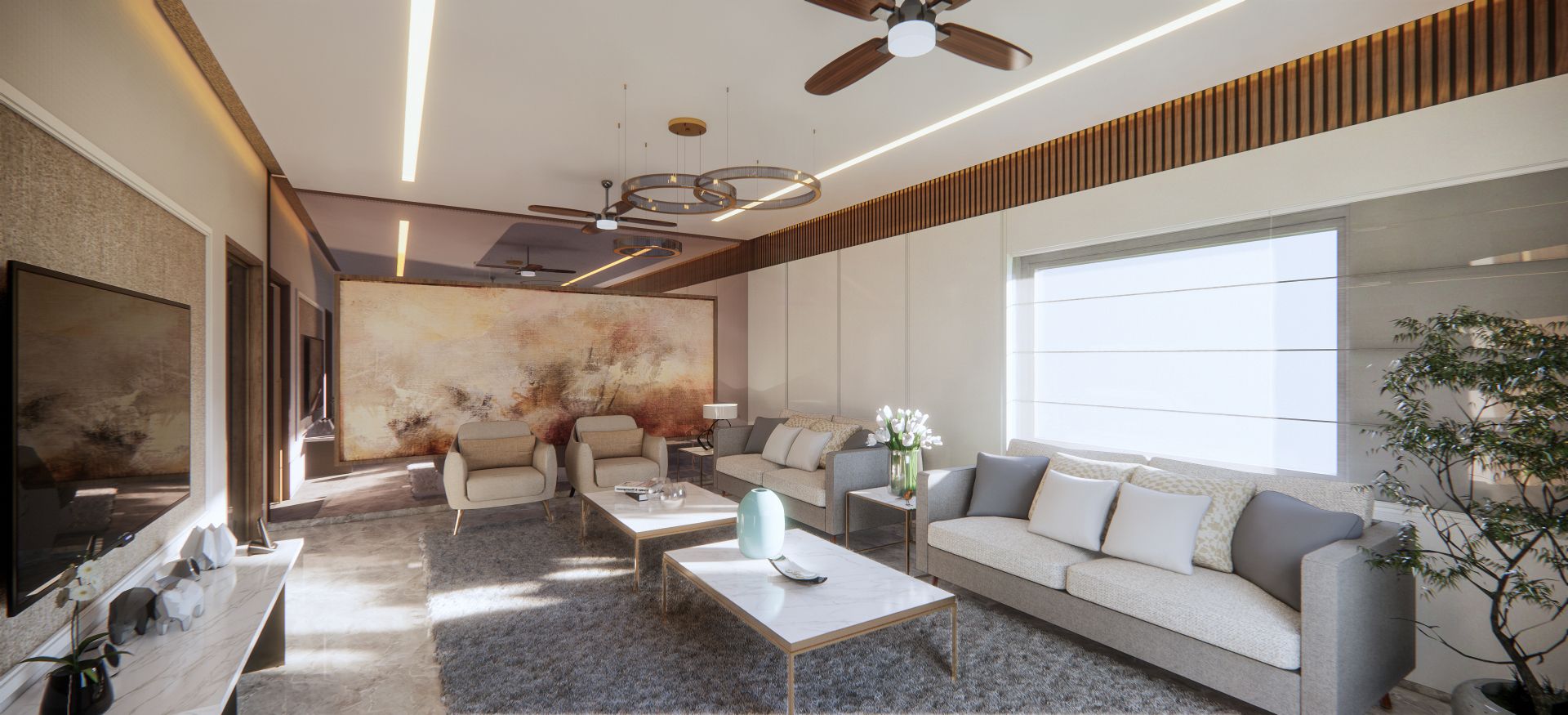

Twin-ring chandeliers, a textured artwork wall and a reeded timber accent ceiling — composed around two parallel seating runs for hosting.

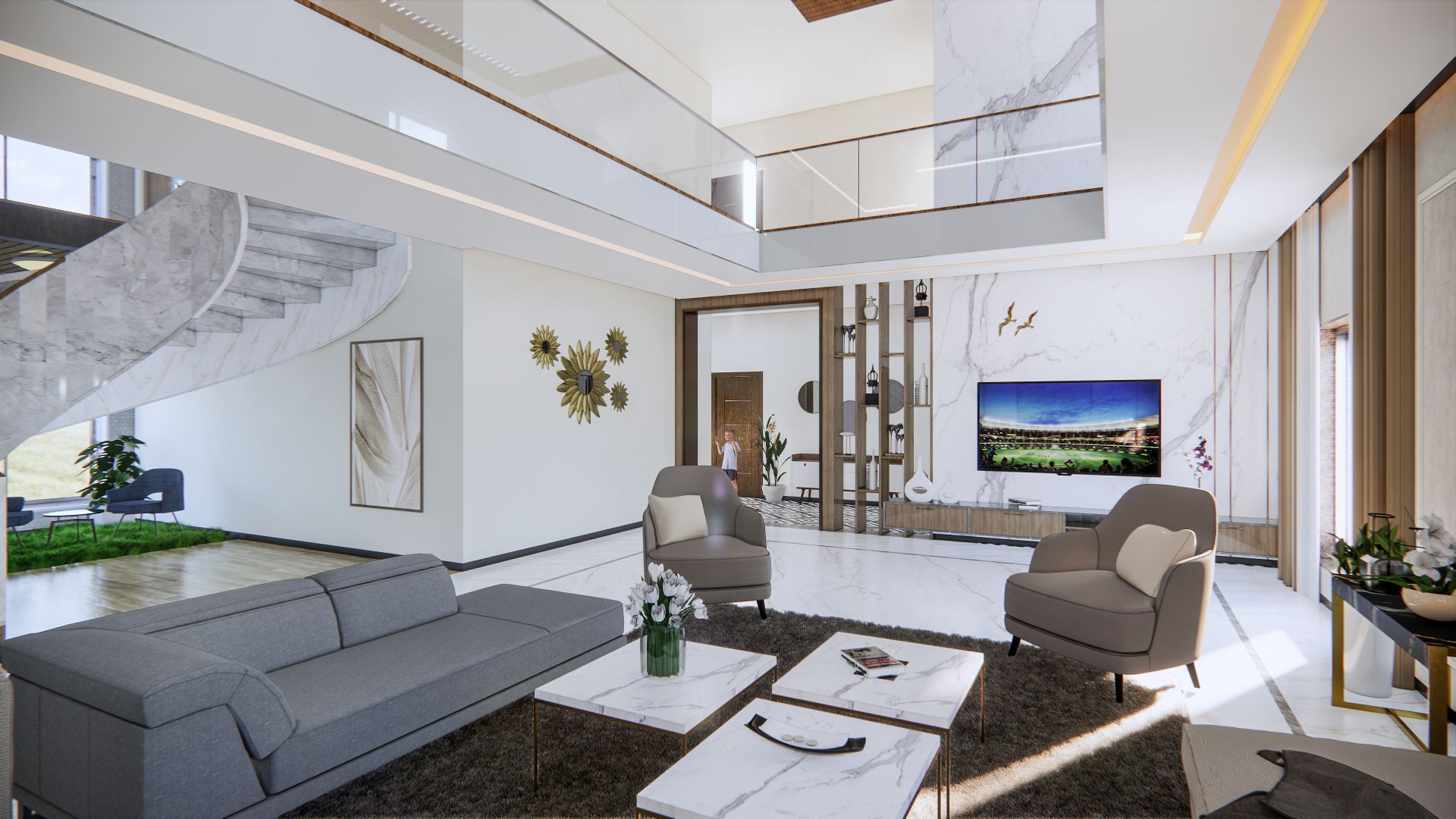

A curved bookmatched marble stair anchors the living volume — paired with a reeded timber screen, brass-edged media wall and a glass mezzanine balustrade above.

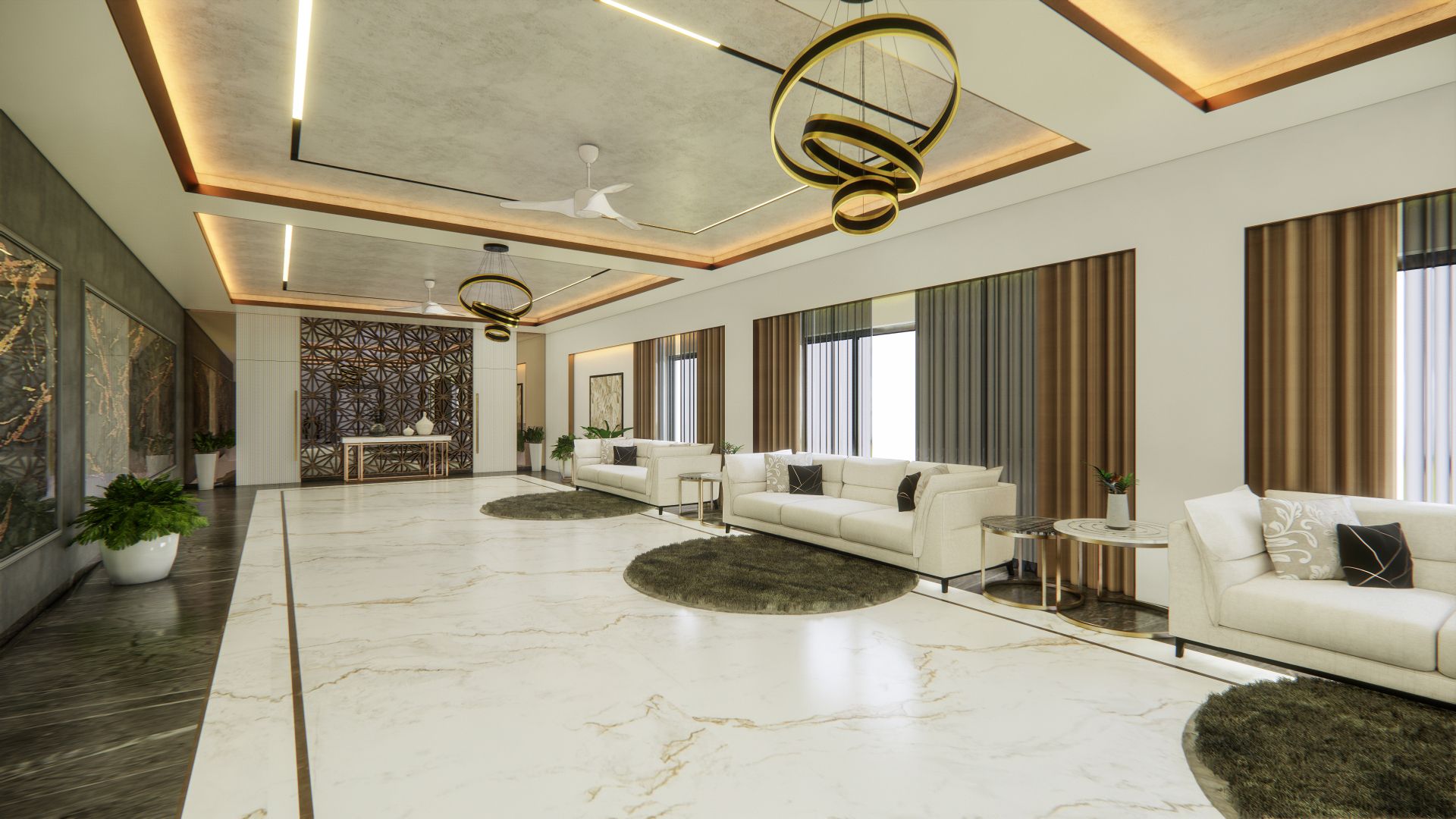

The first-floor hall opens into a long marble-clad lounge — coffered cove ceiling, twin gold-ring pendants and a laser-cut screen anchoring the far end.
